Product Overview

The system collects the monitoring data (temperature and humidity, AC voltage, DC voltage, air conditioning status, fire alarm, burglar alarm, access control and other sensors) from the airport air traffic control equipment room (communication, navigation, weather), various types of equipment, and the monitoring data of the dynamic equipment of the machine room (temperature and humidity, AC voltage, DC voltage, air conditioning status, fire alarm, burglar alarm, access control and other sensors), summarizes and processes them in the CCMS-100A industrial personal computer, and then sends them to the server in the center console of the air traffic control building for centralized processing through the transmission of equipment. Finally, the monitoring data collected in each machine room is displayed on the LED screen, providing visual instructions to the duty personnel, and holding the working conditions of the equipment and machine room at any time.

Product Case

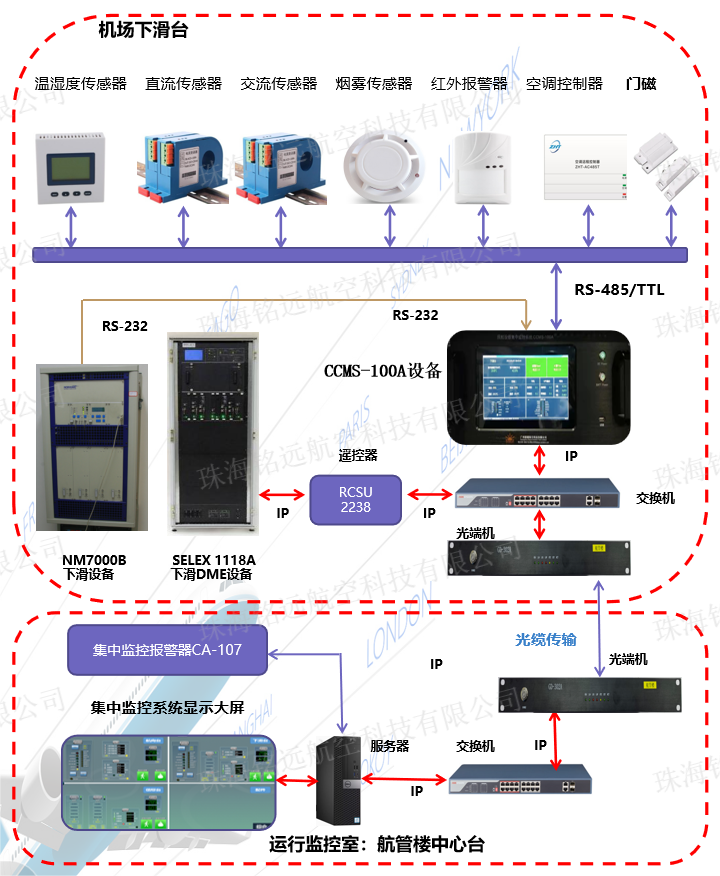

Centralized monitoring system diagram of navigation equipment of Guilin Airport, Guangxi.

Product highlights

1、Use the RS-232 serial port or IP port of the air traffic control equipment (communication, navigation, weather ) to collect the real-time monitoring data of the air traffic control equipment and display it on the software interface of the central console server of the air traffic control building.

2、The alarm and warning threshold values of key monitoring parameters are preset in the server software as the judgment basis for equipment normal operation and monitoring parameter alarm, and auxiliary as the monitoring terminal for equipment operation.

3、When the equipment alarms are turned off/changed, the centralized monitoring alarm CA-107 connected to the server can provide three kinds of alarm prompts: one is the high decibel audible and visual alarm prompt (timely remind the attendant of the current working state of the equipment), the other is the call alarm prompt for the bundled fixed line phone, and the third is the call to the bundled mobile phone card, answer the AI voice prompt, and inform the equipment of the failure.

Product Characteristic

1. Data acquisition ports: 8 RJ45 interfaces.

2. USB ports: 3.

3. COM port: 5 RS-232 serial ports.

4. IP Ethernet port: 2 gigabit interfaces.

5. Type of monitoring data acquisition air traffic control equipment: DVOR, DME, ILS, NDB/MB, VHF radio, AWOS, etc.

6. Type of dynamic ring equipment for data acquisition in machine room: temperature and humidity, AC voltage, DC voltage, air conditioning status, fire alarm, burglar alarm, access control, other sensors, etc.

7. Transmission mode: IP Ethernet LAN, optical terminal equipment, optical cable, etc.

8. Equipment output alarm type: fixed telephone, mobile phone SMS, audible and visual alarm prompt.

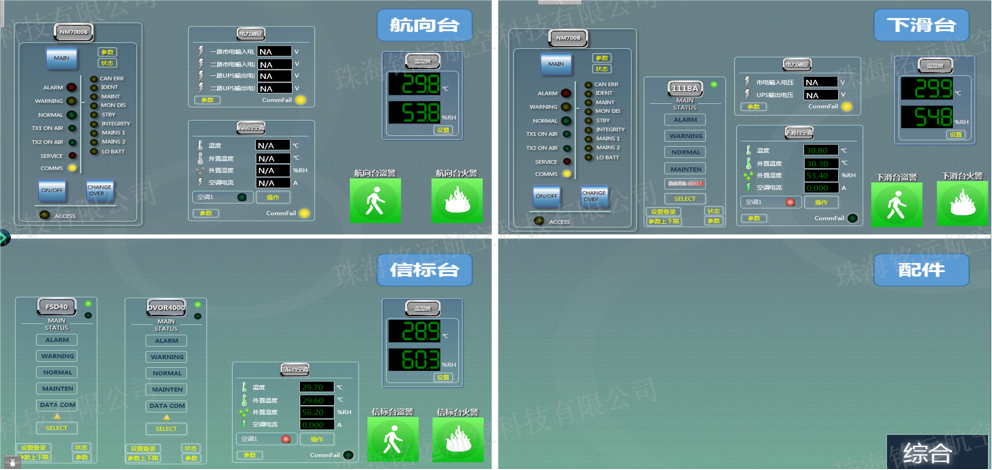

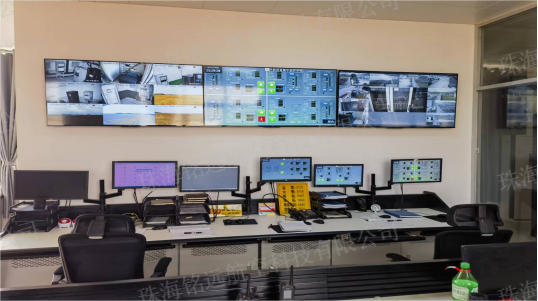

Central console of the ATC building (navigation duty room): Large display screen of centralized monitoring software.

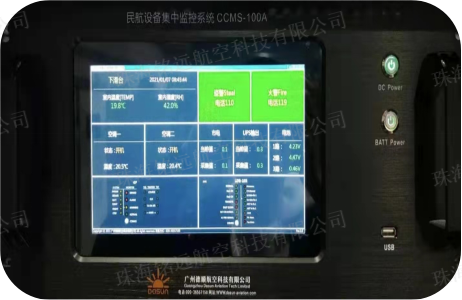

CCMS-100A Front view of station data acquisition equipment

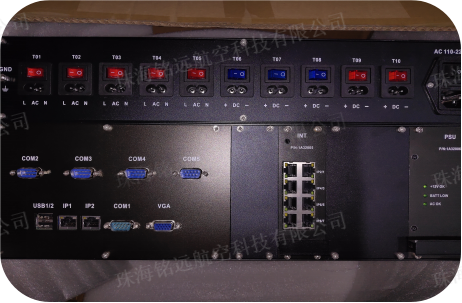

CMS-100A Rear view of station data acquisition equipment

system structure

Product composition

1、The station machine room is composed of CCMS-100A centralized monitoring host, dynamic ring sensors (such as temperature and humidity, fire alarm, theft alarm, air conditioning, access control, AC, DC and other sensors), air traffic control equipment data collector, system software, etc.

2、The central console of the air traffic control building is composed of centralized monitoring server, large display screen, centralized monitoring alarm CA-107, switch, system software, etc.

3、The transmission equipment is composed of optical terminals and switches between the station machine room and the air traffic control building.

ELECTRICAL

Primary Power：110V — 220V AC±10%，47 — 63 Hz，single phase.

Standby Power：12V DC backup battery, working for at least 4 hours.

MECHANICAL

Size：22cm(H)X60cm(W)X40cm(D)，Standard 5U chassis.

Weight：15kg.

ENVIRONMENTAL

Temperature：-10°C— +50°C.

Relative Humidity：0 — 95%.

Application Airport

Dali in Yunnan, Zhaotong in Yunnan, Guilin in Guangxi, Shangri La in Yunnan, Yutian in Xinjiang, Guangyuan  in Sichuan and other airports.
