Product
K552031 VHF antenna
Product Overview
VHF antenna, whose operating frequency is the same as that of VHF radio station, is used for VHF radio station to receive and transmit radio frequency signals.

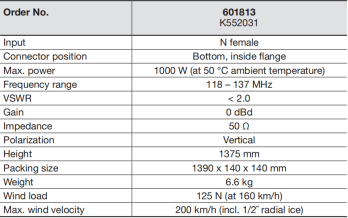

Product Characteristics
1. Frequency range: 118-137MHz.
2. Output power: ≤1000 watts.
3. Gain: 0dB.
4. Impedance: 50 ohms.
5. VSWR: ≤ 2.0.
6. Polarization mode: vertical.
7. Connector: N-type female.
8. Length: 1.4 m.
9. Weight: 6.6Kg.
Horizontal and vertical plane waveform
Product Appearance
Application Case
In December 2021, the VHF antenna will be installed on the antenna reflection network of DVOR53D equipment at Xinjiang Taxian Airport, as shown in the figure below.
