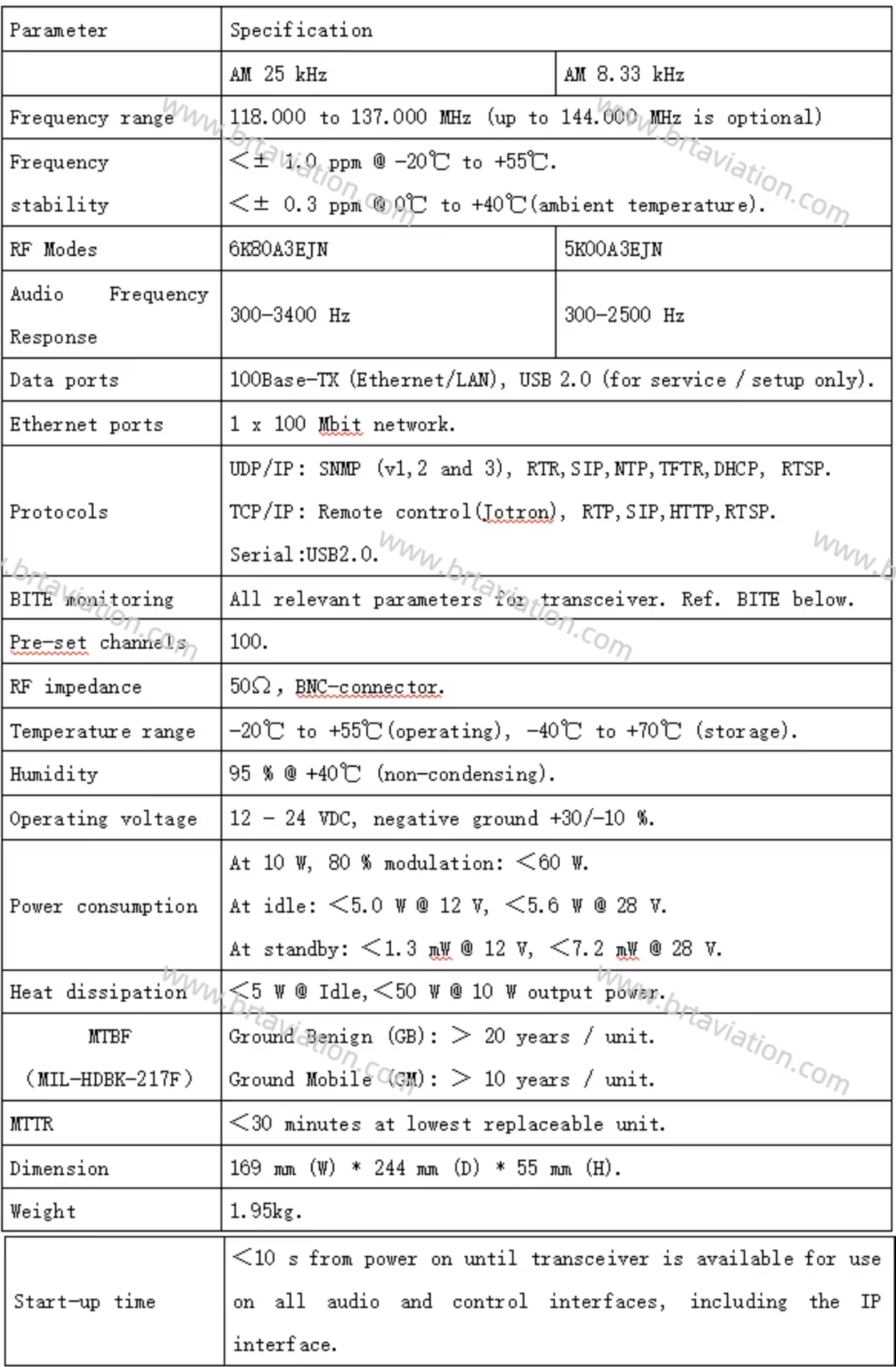

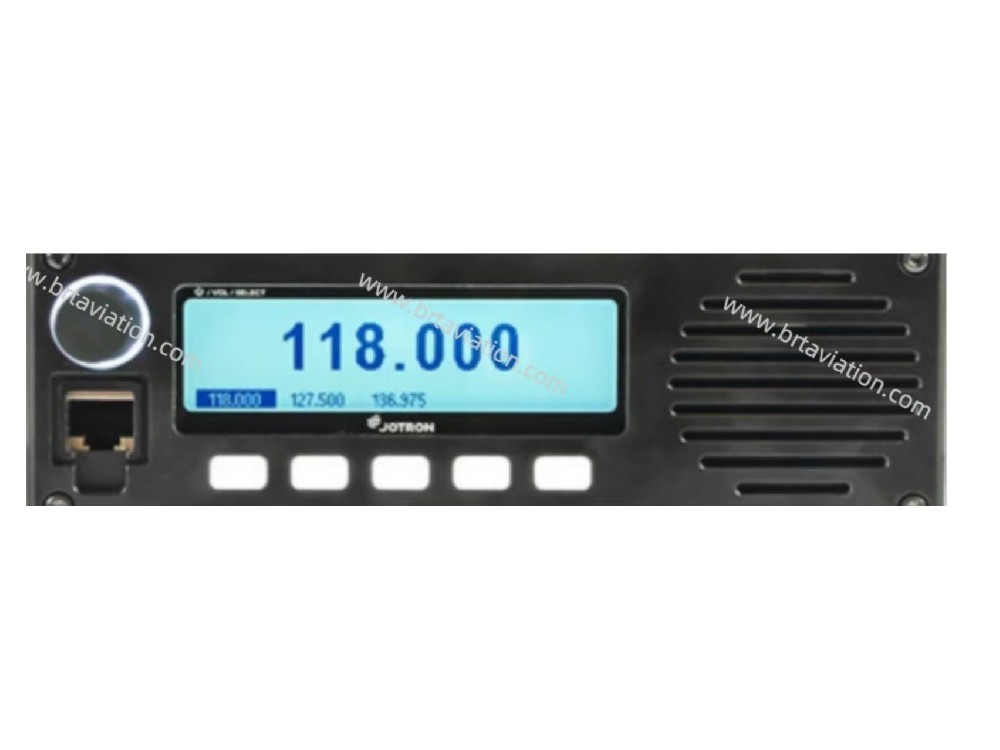

Product

AM 25 kHz

AM 8.33 kHz

Frequency range

118 to 137MHz (up to 144MHz is optional).

Frequency stability

＜± 1.0 ppm @ -20℃ to +55℃.

＜± 0.3 ppm @ 0℃ to +40℃(ambient temperature).

RF Modes

6K80A3EJN

5K00A3EJN

Audio Frequency Response

300-3400Hz

300-2500Hz

Data ports

100Base-TX (Ethernet/LAN), USB 2.0 (for service / setup only).

Ethernet ports

1 x 100 Mbit network.

Protocols

UDP/IP: SNMP (v1,2 and 3), RTR,SIP,NTP,TFTR,DHCP, RTSP.

TCP/IP: Remote control, RTP,SIP,HTTP, RTSP.

Serial:USB2.0.

BITE monitoring

All relevant parameters for transceiver. Ref. BITE below.

Pre-set channels

100.

RF impedance

50Ω，BNC-connector.

Temperature range

-20℃ to +55℃(operating), -40℃ to +70℃ (storage).

Humidity

95 % @ +40℃ (non-condensing).

Operating voltage

12 - 24 VDC, negative ground +30/-10 %.

Power consumption

At 10 W, 80 % modulation: ＜60 W.

At idle: ＜5.0 W @ 12 V, ＜5.6 W @ 28 V.

At standby: ＜1.3 mW @ 12 V, ＜7.2 mW @ 28 V.

Heat dissipation

＜5 W @ Idle,＜50 W @ 10 W output power.

MTBF

Ground Benign (GB): ＞ 20 years / unit.

Ground Mobile (GM): ＞ 10 years / unit.

MTTR

＜30 minutes at lowest replaceable unit.

Dimension

169 mm (W) * 244 mm (D) * 55 mm (H).

Weight

1.95kg.

Start-up time

＜10s from power on until transceiver is available for use on all audio and control interfaces, including the IP interface.

AM 25kHz

AM 8.33kHz

Power output

1 -10 W, Adjustable in 0.1 dB step  (30.0 up to 40.0dBm).

Automatically reduced if high VSWR is detected.

VSWR

1: Infinity. Protected against shorted and open circuit.

Adjacent channel power

＞70 dBc.

Modulation depth

Up to 95%.

Distortion

＜2 % @ 85 % modulation.

In-band spurious emissions

≤-100dBc(-60 dBm @ 10 W output）.

Harmonic emission

≤-80dBc(-40 dBm @ 10 W output）.

Intermodulation attenuation

Typically ≤ -50 dBc.

Power attack and release time

＜3 ms attack, ＜2 ms release time.

Keying Time

＜10ms.

Mic input

Support dynamic and electret types with adjustable sensitivity.Mic Bias is selectable.

Line input

600Ω，-40 to +10dB,adjustable sensitivity, single ended.

AGC（VOGAD）range

＞30dB.

Keying options

Mic/Headset connector, I/O connector (configurable input),

SNMP, TCP/IP, RTP header.

Signal/Noise (Hum and noise)

＞40dB.

Timeout

5 to 50s (300 s) in 5s steps .

Duty cycle

30 % Tx/Rx operation @ ambient below 40 ℃.

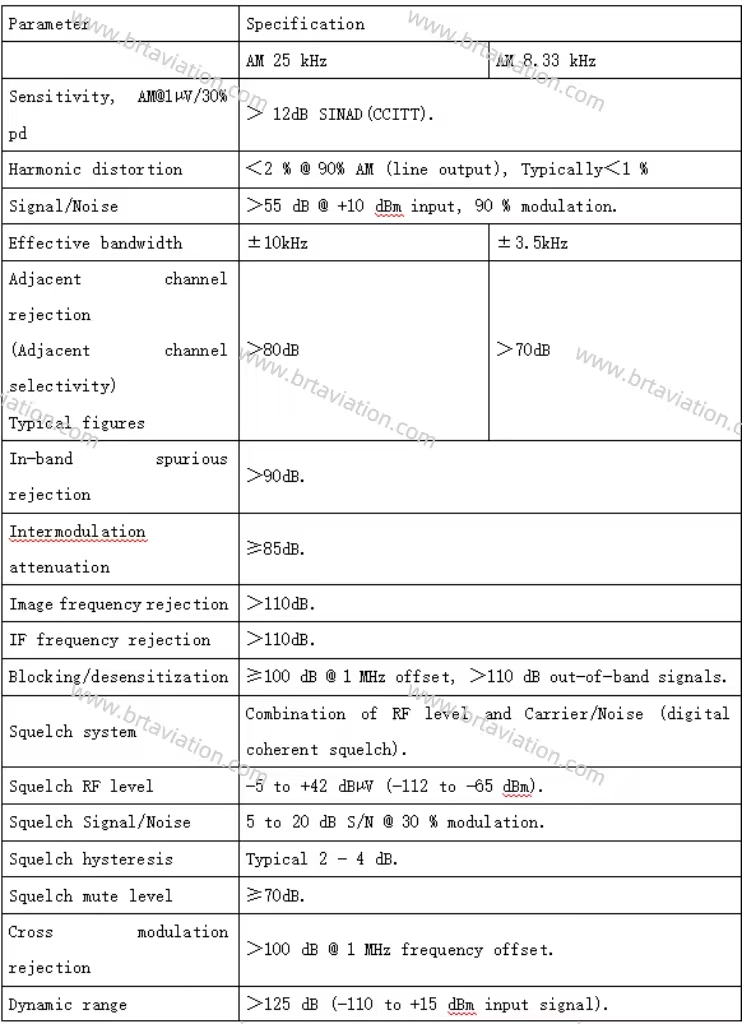

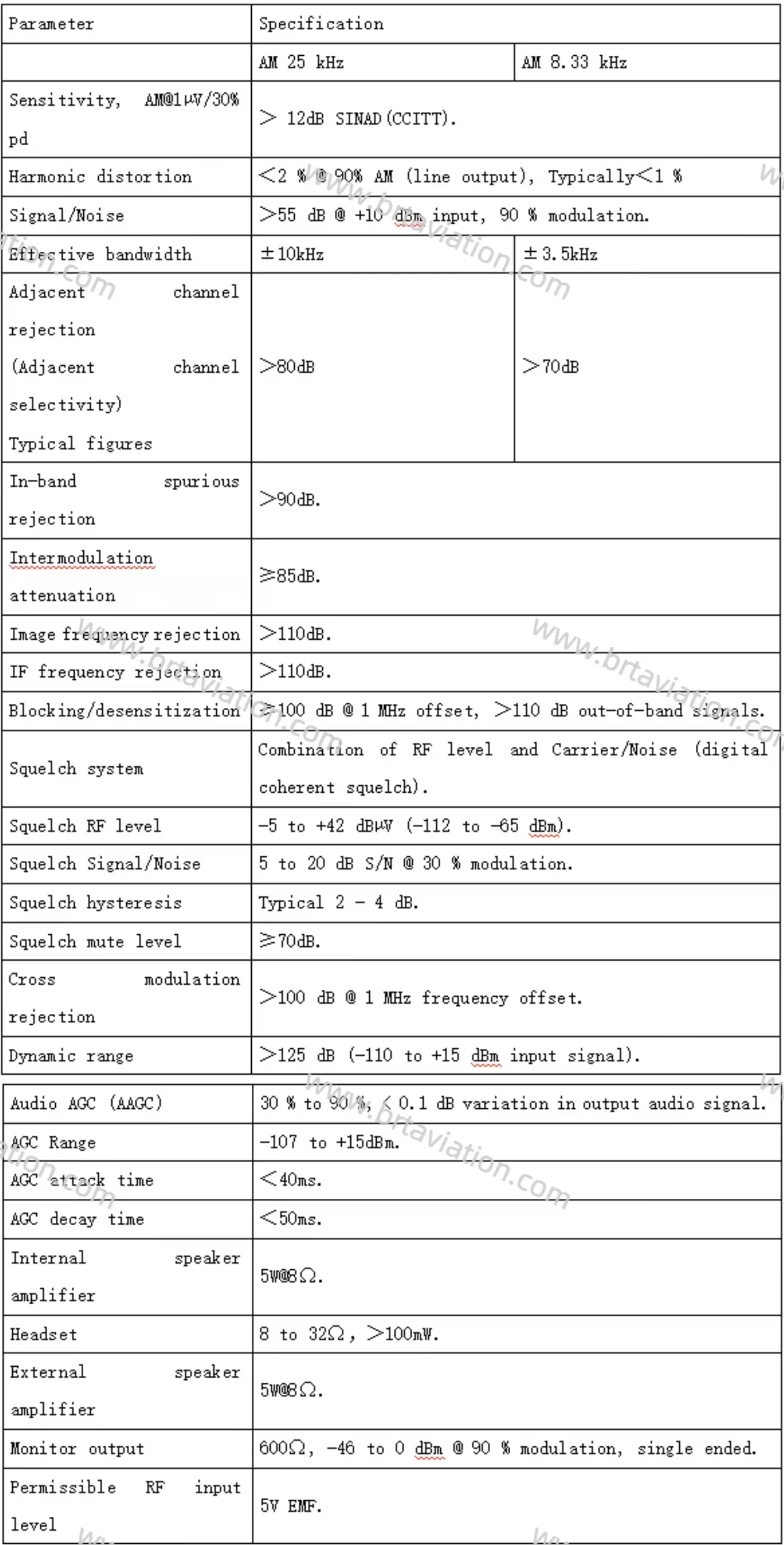

AM 25kHz

AM 8.33kHz

Sensitivity,AM@1µV/30%

＞12dB SINAD(CCITT).

Harmonic distortion

＜2 % @ 90% AM (line output), Typically＜1 %

Signal/Noise

＞55 dB @ +10 dBm input, 90 % modulation.

Effective bandwidth

±10kHz

±3.5kHz

Adjacent channel rejection

(Adjacent channel selectivity) Typical figures

＞80dB

＞70dB

In-band spurious rejection

＞90dB.

Inter modulation attenuation

≥85dB.

Image frequency rejection

＞110dB.

IF frequency rejection

＞110dB.

Blocking/desensitization

≥100 dB @ 1 MHz offset, ＞110 dB out-of-band signals.

Squelch system

Combination of RF level and Carrier/Noise (digital coherent squelch).

Squelch RF level

-5 to +42 dBµV (-112 to -65 dBm).

Squelch Signal/Noise

5 to 20 dB S/N @ 30 % modulation.

Squelch hysteresis

Typical 2 - 4 dB.

Squelch mute level

≥70dB.

Cross modulation rejection

＞100 dB @ 1 MHz frequency offset.

Dynamic range

＞125 dB (-110 to +15 dBm input signal).

Audio AGC (AAGC)

30 % to 90 %, < 0.1 dB variation in output audio signal.

AGC Range

-107 to +15dBm.

AGC attack time

＜40ms.

AGC decay time

＜50ms.

Internal speaker amplifier

5W@8Ω.

Headset

8 to 32Ω，＞100mW.

External speaker amplifier

5W@8Ω.

Monitor output

600Ω, -46 to 0 dBm @ 90 % modulation, single ended.

Permissible RF input level

5V EMF.
