2100 Instrument Landing System(ILS)

Brand: SELEX Company, USA
Model: ILS2100，LLZ2100，GP2110
Description: “Bright Aviation” is one of the agents of ILS2100，DME1118Aequipment in China, and has established a simulator test platform.
  • Specifications
  • Download

一、Business

“Bright Aviation” supplies complete sets of equipment, including spare parts supply, installation and commissioning, flight check, panel repair, factory training, after-sales service, technical consultation, spare parts support, on-site fault repair, periodic inspection and other businesses.



二、Performance

“Bright Aviation”has completed the installation and commissioning of ILS2100，DME1118A equipment, flight check, on-site training, fault repair, periodic inspection, system optimization and other businesses in more than 10 airports in China, including  Cangyuan Airport, Lancang Airport, Chenzhou Airport, Wugang Airport, Sanya Airport, etc.


三、 Case

1. In June 2018, “Bright Aviation” supplied and installed ILS2100 equipment at Lancang Airport, Yunnan Province, China.

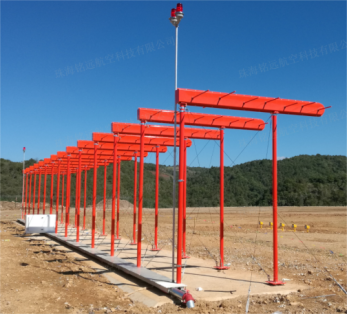

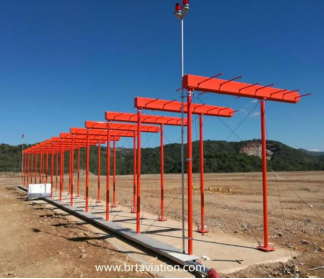

LLZ antenna system as shown in the figure.




2. In March 2020, the 2110 Localizer of an airport in China was struck by lightning, and “Bright Aviation” sent engineers to the site to start equipment inspection and repair on the same day.

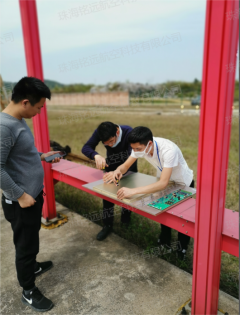

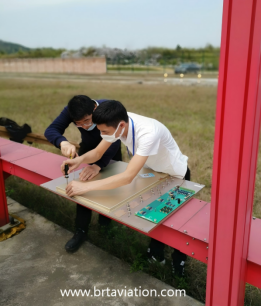

Field Repair LLZ Distribution Unit (DU)

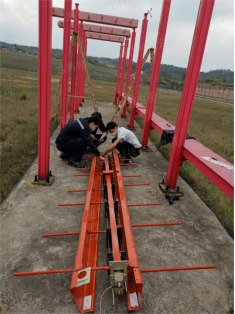

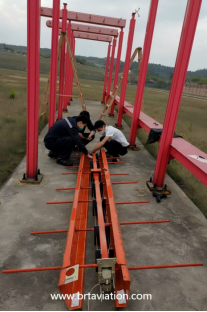

Field Repair LLZ Antenna Dipoles




四、Simulator Platform

1. “Bright Aviation” has established a complete set of ILS2100 equipment simulator platform to undertake simulator modification, plate on-board testing, plate repair, practical training, spare parts support, technical support, etc.

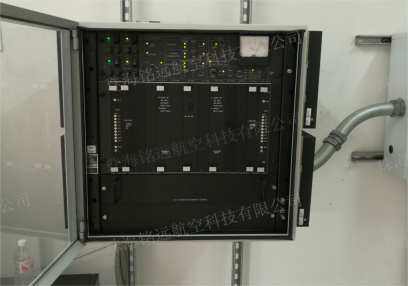

2. ILS2100 simulator platform，as shown in the figure.





五、Board List


No.

Board English Name

Board Chinese Name

Abbreviation

Serial Number

一、Transmitter Unit，发射机单元

1

Synthesizer CCA

合成器

SYN

012012-1001

2

LLZ RF Amp/Mod Assy

航向功放板

LPA

030004-0001

3

LLZ Trsfr/Recom Drawer Assy

航向转换/射频混合重组单元

TRDA-LLZ

030664-0005

4

LLZ Standby XMTR Rcmbnr CCA

航向备用发射机接收处理单元

TRU-LLZ

012106-0001

5

GP RF Amp/Mod Assy

下滑功放板

GPA

030003-0001

6

GP Trsfr/Recom Drawer Assy

下滑转换/射频混合重组单元

TRDA-GP

030661-0007

7

GP Standby XMTR Rcmbnr CCA

下滑备用发射机接收处理单元

TRU-GP

012106-0002

8

Transfer  Switch CCA

继电器驱动器

TSC

012044-0001

9

Switch,RF-XMSN Line

射频同轴继电器

RSW

950337-0000

10

Backplane CCA

母板

BPC

012009-0001

二、Monitor Unit，监控器单元

1

Monitor CCA

监控板

MON

012011-1001

2

LLZ MON RECOM CCA

航向监控重组单元

MRU

012125-0001

3

GP MON RECOM UNIT

下滑监控重组单元

MRU

012053-0001

4

FFM RX-LOC

远场监控接收板

FFM

012130-1001

三、Controller Unit，控制单元

1

LCU ASSY

本地控制板

LCU

012008-1001

2

RMS Processor CCA

远程维护板

RMS

012057-1001

3

Cabinet Interface CCA

接口板

INF

012096-0001

4

Exterior TVS CCA

瞬态抑制板

ETC

012095-0001

四、Remote Controller Unit，遥控器单元

1

Remote Control Unit，RCSU2238

远程监控单元（遥控器）

RCSU

472238-0302

2

Tower Monitor and Display Unit，RCU2138，RCU2238

塔台监控重显单元

RCU

002238-0700

五、Power Supply Unit，电源单元

1

AC-DC Power Supply Assy

交流直流电源模块

PSA

030716-0002

2

Batt Chg/Power Supply（BCPS）

电池充电供电系统

BCPS

012014-1001

3

AC Power Monitor  CCA

AC电源监控组件

AMC

012017-0001

4

Power Supply CCA

电源模块

PSC

950896-0000

六、Antenna Unit，天线单元

1

Antenna Fault CCA

天线故障检测板

AFC

012135-0001

2

LLZ RF DIST ASSY

航向射频分配单元

DU

030750-0001

3

LLZ RF COMB ASSY

航向射频监控混合单元

CU

030775-0001

4

LLZ Antena ASSY

航向天线

ANT

/

5

LLZ NF MON AMP ASSY

航向近场监控信号放大盒

LNMA

012058-0002

6

GP NF MON AMP ASSY

下滑近场监控信号放大盒

GNMA

012058-0002

7

LLZ Antenna NF

航向近场监控天线

LAN

/

8

GP Antenna NF

下滑近场监控天线

GAN

/

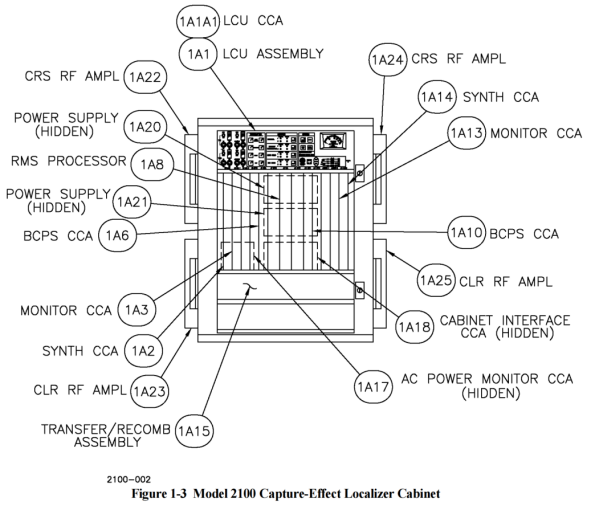

六、Cabinet Components distribution Diagram
