Brand: Indra Company, Australia
Model: DVOR 53D
Description: “Bright Aviation” has established a complete set of DVOR53D/DME LDB-103 equipment simulator test platform.
Airport facilities and brand suppliers
- Navigation ILS DVOR DME MB NDB Antenna Simulator PIR Civil Aviation Equipment Central Shelter DVOR Antenna Reflector Network Fiberglass Flexible Rod Aviation Obstruction Light Network Transmission System
- Communication
- Weather
- Surveillance
- Terminal
- Transmission
- Instrument
- Lighting
- Power Supply
- Other Projects
Product
53D Doppler Very High Frequency Omnidirectional Range (DVOR)
一、Business
“Bright Aviation” supplies complete sets of equipment, including spare parts supply, installation and commissioning, flight check, panel repair, factory training, after-sales service, technical consultation, spare parts support, on-site fault repair, periodic inspection and other businesses.

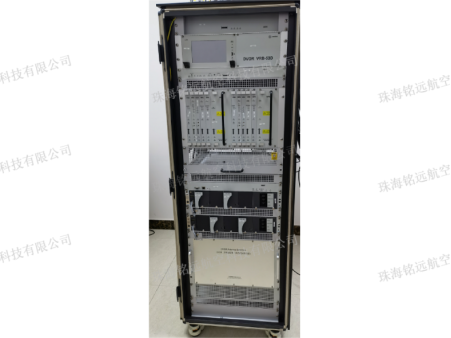

DVOR53D cabinet，as shown in the figure.
二、Performance
“Bright Aviation” has completed DVOR53D, DME LDB-103 equipment, installation and commissioning, flight check, on-site training, fault repair, periodic inspection, system optimization and other businesses at more than 10 airports in China, including Tashkurgan airport, Alar airport, Wuhan airport, Dingri airport, Liuzhou airport.
三、Case

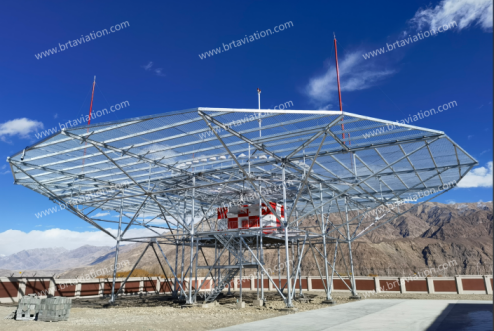

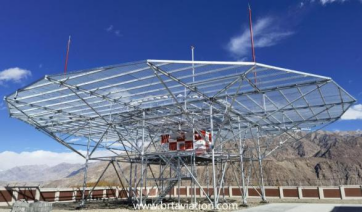

In December 2022,“Bright Aviation”performed DVOR53D，DME LDB-103 equipment installation and commissioning at Tashkurgan Airport, Xinjiang Province, China, as shown in the figure.
四、Simulator platform
1.“Bright Aviation” has established a complete set of DVOR53D equipment simulator platform to undertake simulator modification, plate on-board testing, plate repair, practical training, spare parts support and technical support.

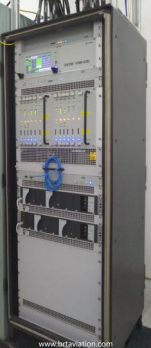

2. Rebuilt DVOR53D simulator platform，as shown in the figure.
五、Board List
No. 序号 | Board English Name 板件英文名称 | Board Chinese Name 板件中文名称 | Abbreviation 简 称 | Serial Number 序号（PN） |
一、Transmitter Unit，发射机单元 | ||||
1 | Signal Generation Unit | 信号产生板 | SGU | 1A73003 006622005302.RE |
2 | Sideband Power Amp(SPA) | 边带信号功放板 | SPA | 1A73004 0066220005400.RE |
3 | Reference Power Amp(RPA) | 基准信号功放板 | RPA | 1A73005 00662200550701.RE |
4 | RF Signal Isolator | 射频信号隔离器 | RFI | 2A73095 |
二、Monitor Unit，监控器单元 | ||||
1 | Control & Monitoring Unit | 控制监控板 | CMU | 1A73007 0066220005100.RE |
2 | Monitor Receiver Unit | 监控接收板 | MRU | 1A73006 0066220005200.RE |
3 | Monitoring signal distribution | 监控信号分配 | MSD | 1A71160.SB |
三、Controller Unit，控制单元 | ||||
1 | Local Control Unit | 本地控制单元 | LCU | 1A73080 0066220004100.RE |
2 | Relay Control Unit(RCU) | 继电器控制单元 | RCU | 1A73013 0066220003000.RE |
3 | External Input Unit(DVOR) | 外部接口单元 | EIU | 1A73050 0063430005400.RE |
4 | IP Ethernet Switch | 以太网开关 | IES | 1110080J 1390301151901 |
5 | Network Management Processor Board | 网络管理处理板 | NMP | 0066220005600.RE |
Dual Fan Unit Kit | 双风扇单元组件 | DFU | 1A73090.RE | |
四、Remote Controller Unit，遥控器单元 | ||||
1 | Remote Control Status Unit | 远程控制状态单元 （遥控器） | RCSU IND-35D | 0066910000600 |
2 | Remote Status Panel [DVOR/DME] | DVOR/DME遥控板 | RSP-DVOR/DME | 1A72097 |
3 | Remote Status Panel [DME/DME] | DME/DME遥控板 | RSP-DME/DME | 2A72097 |
五、Power Supply Unit，电源单元 | ||||
1 | AC/DC Power Supply | 交直流电源单元 | PSU | 2A72595 006622000617 |
2 | PSU Rectifier S/Mode 24V 400W | 交流电源模块 | REC | 1A73063 0063420005500.RE |
3 | PSU Supervisory Unit/Controller | 电源监控单元/控制器 | CXCI+ | 2A73009 |
六、Antenna Unit，天线单元 | ||||
1 | Antenna Distribution Switch | 天线分配开关 | ADS | 1A73012 0066220002000.RE |
2 | Near Field Monitor Kit | DVOR近场监控天线 | NFM | 1A73091 130010246210 |
3 | CSB Antenna | 载波天线 | CSB-ANT | 3A71133 0066220000300.SB |
4 | CSB Antenna Balun | 载波天线变换器 | CSB-BAL | 1A71134 0066220013000.SB |
5 | SB Antenna | 边带天线 | SB-ANT | 2A73055 006622000400.SB |
6 | SB Antenna Balun | 边带天线变换器 | CSB-BAL | 1A73066 0066220015000.SB |

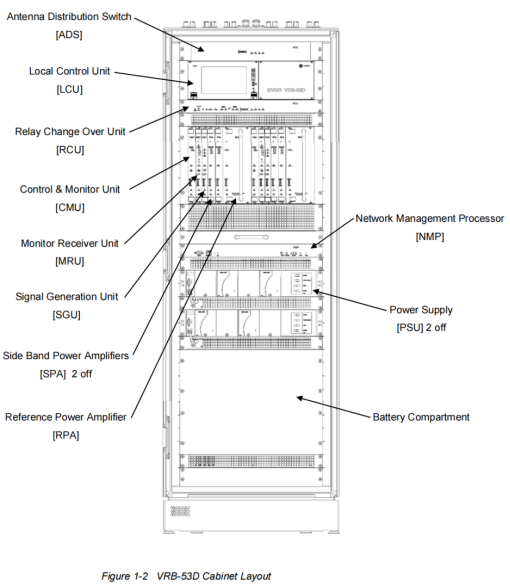

六、Cabinet Components distribution Diagram
