一、 Business

“Bright Aviation” provides equipment supply, installation and commissioning, technical guidance, after-sales service, technical consultation, equipment fault repair, etc.

二、Overview

Distance Measuring Equipment (DME) host outputs RF carrier signals, which are then fed into the DME antenna simulator. This antenna simulator serves as both a transmitting signal load (replacing the function of the DME transmitting antenna) and a coupled and mixed output RF monitoring signal (replacing the function of the DME monitoring antenna to sample RF signals). Ultimately, this ensures that all monitoring parameters of the DME monitor are in normal working condition, with no early warnings or alarms for DME monitoring parameters.

三、Characteristic

1. Applicable to all DME (DME1118A, DME1119A, DME415, DME435, LDB-102, LDB-103, etc.).

2. DME carrier RF power input range: 100 ～ 1000W, monitoring RF signal level intensity output range: -40 ～ 10 dBm.

3. One-channel RF signal input connection terminal, labeled as "RF IN", and two-channel RF monitoring output signals, labeled as "MON1 OUT" and "MON2 OUT".

4. Connector model: N-type female connector.

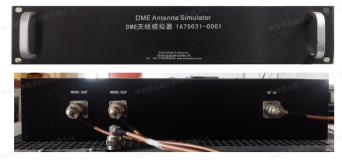

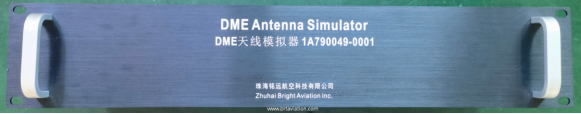

四、Appearance

五、Mechanical

1. Size: 13 (H) * 60 (W) * 24 (D) cm, standard 3U chassis.

2. Weight: 4 kg.

六、Environmental

1. Temperature: indoor -10 °C ～ +50 °C.

2. Relative humidity: indoor 0 ～ 95%  (non condensing).

七、Application Airport

Yinchuan Airport in Qinghai Province, China, Yantai Airport in Shandong Province, China, Mangshi Airport in Yunnan Province, China, Guilin Airport in Guangxi Province, China, Hohhot Airport in Inner Mongolia, China, Guiyang Airport in Guizhou Province, China, etc.
