1. Portable ILS/VOR Receiver, full English name: "Portable ILS/VOR Receiver" or "Portable Navaid Receiver", abbreviated as "PIR", "PNR" or "Portable ILS/VOR Receiver".

2. Portable ILS Receiver (PIR) is a radio frequency signal analyzer for airport navaid equipment (Instrument Landing System (ILS), Doppler Very High Frequency Omnidirectional Range (DVOR), and Marker Beacon (MB)). It is specialized in measuring, analyzing, and inspecting the audio and radio frequency signals of navaid equipment, with functions such as spectrum analysis and data recording.

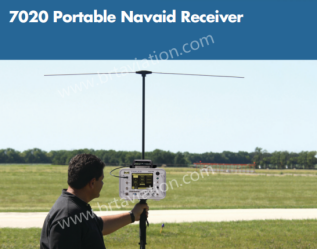

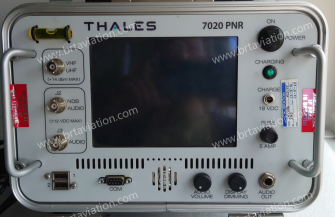

三、Appearance

四、Measurement

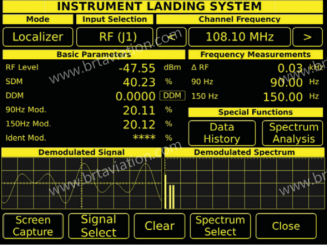

五、Display

六、 Characteristics

1. Display: 6.5-inch diagonal color display, daylight readable, adjustable backlight brightness.

2. Spectrum display range: 75 MHz -350 MHz, 0 to -90dBm.

3. Audio display range: 0 to 50KHz, up to 10V peak (2 channels).

4. Data recording: It can record all available parameters of the navigation device, with over 1 million records stored for easy transfer to a USB drive.

5. Audio output: Can monitor carrier recognition signals (built-in speaker).

七、Navigation Aid Measurements

1. Input signal types (ILS and VOR): RF, audio.

2. ILS input level: 0 to -87dBm.

3. DVOR input level: 0 to -76dBm.

4. Support measurement of heading beacon (LOC) and glide slope beacon (GS).

5. LOC channel DDM signal measurement error: ± 0.002 DDM.

6. Measurement error of DDM signal for GS glide slope: ± 0.003 DDM.

7. DVOR: Supports measurement with CVOR and DVOR devices.

8. DVOR azimuth accuracy: RF signal strength ranging from 0 to -50dBm, within ± 0.05 degrees.

9. DVOR azimuth accuracy: RF signal strength below -76dBm,±0.2°.

10. Pointing beacon MB measurement item: RF level, modulation%.

11. Non directional beacon NDB measurement item: RF level, modulation%.
