品牌: Bright Aviation
型号: H4526A
描述: DVOR antenna reflector network, providing the Doppler Very High Frequency Omnidirectional Range（ DVOR） carrier antenna (1) and sideband antenna (48) with RF signal reflection reference plane, ensuring that the DVOR forms a stable and reliable field pattern in space, meeting equipment technical requirements.
Airport facilities and brand suppliers
- Navigation Equipment ILS DVOR DME MB NDB Antenna Simulator PIR Civil Aviation Equipment Central Shelter DVOR Antenna Reflector Network Fiberglass Flexible Rod Aviation Obstruction Light Network Transmission System
- Communication Equipment
- Weather Equipment
- Terminal Hall Equipment
- Instruments & Meters
- Other Projects
Product
H4526A DVOR Antenna Reflector Network
一、Business
“Bright Aviation”Bright Aviation produces and supplies various specifications and models of DVOR antenna reflector net, including installation and commissioning, technical guidance, after-sales service, technical consultation and other turnkey projects.
二、Overview
1. DVOR antenna reflector network, providing DVOR carrier antenna (1) and sideband antenna (48) with RF signal reflection reference plane, ensuring that the DVOR forms a stable and reliable field pattern in space, meeting equipment technical requirements.
2. The lower the DVOR antenna reflector net is from the ground, the smaller the reflector net diameter. Conversely, the higher the reflector net is from the ground, the larger the reflector net diameter.
3. A typical DVOR antenna reflector net is 4.5 m above ground level and 26 m in diameter.
三、Appearance

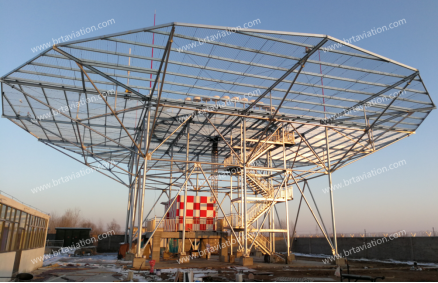

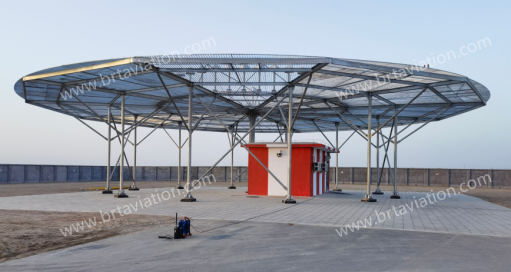

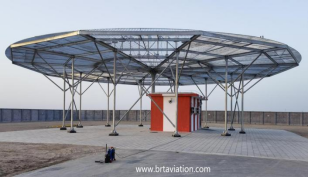

1、The Xinjiang Aral Airport DVOR antenna is reflected, as shown in the figure below, with the reflecting net 4.5 meters high from the ground and 28 meters in diameter.
2、Reflected by a DVOR antenna at Tongshan Navigation Station in Xuzhou, Jiangsu Province, as shown in the figure below, the reflecting net is 10 meters above ground level and 40 meters in diameter.
四、Model Selection
No. | Model | height of reflector net from ground (m) | Diameter of reflector net (m) | Remark |
1 | H4526A | 4.5 | 26 | / |
2 | H4528A | 4.5 | 28 | / |
3 | H5028A | 5 | 28 | / |
4 | H5030A | 5 | 30 | / |
5 | H10040A | 10 | 40 | / |
6 | Custom built to customer requirements. | / | ||
