一、Business

"Bright Aviation" supplies complete sets of equipment, including spare parts supply, installation and commissioning, technical guidance, factory training, after-sales service, plate repair, spare parts support, equipment fault repair，periodic inspection and other businesses.

二、Overview

1. For the airport and civil aviation air traffic control departments, independently develop professional recorders to provide effective guarantee for airport and air traffic control accident investigation, supervision and management.

2. The system adopts distributed pure software architecture, with flexible deployment, convenient maintenance and strong scalability.

3. The system applies a new architecture, separates data acquisition units, pure soft core modules, and runs on the general server and virtualization platform, with higher reliability and stability.

4. The system supports recording analog, digital and IP line data signals, and has ED137 standard IP recording mode to collect and record voice signals of various equipment.

5. The system supports recording radar data in traditional A/C and S modes, ATC automation data, ADS-B and other IP output modes.

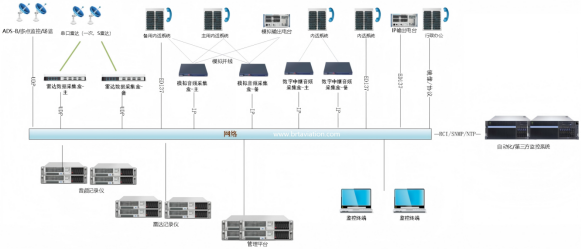

三、System block diagram

四、Equipment  List

五、Performance

1. Voice recorder performance:

(1) Single unit capacity: 300 lines.

(2) Data retrieval time:<5 seconds.

(3) Storage medium: RAID 1/5/10 SAS hard disk.

(4) Mean time between failures (MTBF):>61276 hours.

(5) Mean time to repair (MTTR):<30 minutes.

(6) Rejection ratio of playback echo: ≥ 40dB.

2. Radar recorder performance:

(1) Single machine capacity: 120 channels (serial port).

(2) Data retrieval time:<5 seconds.

(3) Mean time between failures (MTBF):>61276 hours.

(4) Mean time to repair (MTTR):<30 minutes.

六、Highlights

1. Autonomous and controllable: the system software is developed independently using the embedded operating system.

2. Cost advantage: pure software design, which can be deployed on any X86/ARM server and private cloud platform, effectively reduces repeated investment and operation and maintenance costs caused by hardware product update iterations, and provides higher economic benefits.

3. Strong scalability:

(1) The system architecture is flexible, and separate acquisition, recording, storage and management modules are convenient for rapid expansion.

(2) Distributed deployment, collection, recording, storage and management modules are connected in TCP/IP mode, which can be deployed in different places and managed uniformly.

(3) It can quickly add data records of new tasks (controller recording, video monitoring, environmental data, etc.).

4. Easy maintenance:

(1) The acquisition module is designed independently. When the acquisition module fails, it can be directly replaced with spare parts, without affecting the system recording and operation.

(2) The hard disk supports hot swapping. When the hard disk fails, replace the hard disk of the same model without interrupting system recording and operation.

(3) The power supply supports hot swapping. When the power supply fails, replace it with a new one without affecting the system recording and operation.

七、Mechanical

1. Weight：70kg.

2. Size:  22U chassis，120(H) * 60 (W) * 100 (D) cm.

3. Primary Power：110～220Vac±15%，45～63Hz，single phase.

八、Environmental

1. Temperature: Indoor -10°C～+50°C.

2. Relative Humidity: Indoor 0～95% (non condensing).

3. Altitude: 0～4500m MSL.

4. Work Cycle: Continuous Unattended.

九、Application

Wudangshan airport , Wugang airport and other China airports.
