Analog and Digital Interphone（150M/400M）

Brand: Tianjin Telecom, China.
Model: TTR-P130，TCB-C-236D，TCB-C-236E.
Description: “Bright Aviation”sells TTR-P130，TCB-C-236D，TCB-C-236E series portable 150M/400M analog and digital interphone.
  • Specifications
  • Download

一、Overview

The interphone has two working modes:

1. Transceiver Same Frequency Mode: multiple interphones set the same working frequency for receiving and transmitting, and ground communication dispatching can be carried out after simple networking. The communication distance is about 4km radius.

2. Transceiver Different Frequency Mode : with the help of relay station, the communication distance is about 8 km radius, with better communication quality and longer communication distance.

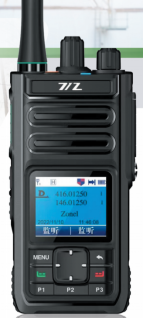

Walkie talkie appearance, as shown below.





二、Characteristic

1. Working mode: analog or digital trunking.

2. The structure is firm and durable, wear-resistant and anti-aging.

3. TR-P130 walkie talkie supports conventional mode (DMR).

4. TCB-C-236E interphone supports normal mode (DMR/PDT/NXDN) and cluster working mode.

5. TCB-C-236E walkie talkie supports normal mode (DM/RM) and digital and analog services in direct mode (DM). It supports trunking mode (TM) and PDT/DMR digital trunking communication system services, and realizes trunking communication functions such as selective call, group call and individual call. It supports digital and analog services in trunk mode (RM).

6. Support Beidou/GPS positioning function.

7. The 2.4-inch/2.0-inch translucent LCD color display screen is adopted, so that the display information can be seen clearly even in outdoor strong light. The ergonomic appearance design greatly enhances the accuracy and comfort of operation.

8. Support IP68 level dustproof and waterproof.



三、Performance

一、Basic Indicators

Project

TR-P130 Digital Interphone

TCB-C-236D Digital Trunking Interphone

TCB-C-236EDigital Trunking Interphone

frequency Range

400～470MHz（UHF）。

136-174MHz；350-390MHz；400-470MHz。

400～470MHz（UHF）。

Channel Spacing

12.5KHz/25KHz。

6.25KHz/12.5KHz/25KHz。

Channel Capacity (Pcs)

200。

1024。

512。

DC Power Supply

7.4V。

Battery Capacity

2800mAh(Li-lon)。

Vocoder Type

AMBE+2。

Frequency Stability

±1.5ppm。

Antenna Impedance

50Ω。

Dimensions

5.5（L）*3.5（W）*13（D）cm。

5.5（L）*3.2（W）*13（D）cm。

Weight (approx.)

330g。

350g。

330g。

二、Transmitter Index

Output Power

4W (High Power); 1W (Low Power).

5W (High Power); 1W (Low Power).

Channel Spacing

12.5kHz/25kHz。

6.25kHz/12.5kHz/25kHz。

Spurious Emission

-36dBm(≤1GHz)；-30dBm(>1GHz)。

FM Modulation

16KOF3E@25kHz；8KOF3E@12.5kHz；4KO0F1D@6.25kHz。

Audio Distortion

≤1% @40%（deviation）。

≤2% @40%（deviation）。

≤1% @40%（deviation）。

Audio Response

+1～-3dB。

FM AC Sound and Noise

40dB@12.5KHz；45dB@25KHz。

Digital FSK Error

<3%。

<2%。

Adjacent Channel Power

60dB@12.5KHz：70dB@25KHz。

三、Receiver Index

Sensitivity (Analog)

0.22μV(FM@12dB，SINAD)；0.18μV(FM@12dB，SINAD)；0.3μV(FM@20dB，SINAD)。

Sensitivity (Digital)

0.20μV(@5%BER)

0.18μV(@5%BER)

0.20μV(@5%BER)

Adjacent Channel Selectivity

60dB@12.5kHz；70dB@25kHz。

70dB@12.5kHz；72dB@25kHz。

intermodulation

60dB@12.5kHz；60dB@25kHz。

65dB。

Block

84dB@12.5kHz；84dB@25kHz。

92dB@±1MHz：96dB@±10MHz。

Spurious Response

70dB@25kHz；70dB@25kHz。

80dB。

Audio Output Power

1.0W/16Ω。

2.0W。

Spurious Emission

<-57dBm。



五、Equipment List ( One Interphone Basic Configuration List)

No.

Name

Model

Qty/Unit

Description

1

Interphone

/

1 Pcs

/

2

Headphones

/

（Optional）

/

3

Battery and Charger

/

1 Pcs

/

4

Antenna

/

1 Pcs

/

5

Data Line and Write Frequency Software

/

（Optional）

/

6

Other Accessories

/

1 Set

/



六、Application

Tongren Airport, Wugang Airport, Shigatse Airport, Wuhai Airport, Zhaotong Airport and other Chinese airports.
