Product

一、Overview

The video monitoring system is used to conduct 24-hour remote video monitoring and control of airport manned or unattended stations (such as navigation stations, radar stations, VHF stations, weather stations, etc.), airfield enclosure systems, indoor and outdoor scenes and various environments, and save video data for more than 30 days before subsequent accident investigation, playback and evidence collection.

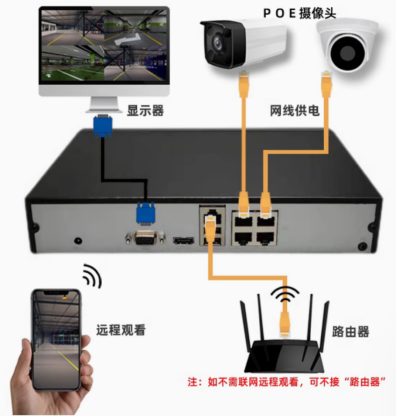

Video main equipment appearance,as shown below.

二、System Architecture

三、Characteristic

1. 4K HD camera quality.

2. Mobile phone and display monitor display and control functions remotely.

3. Instant video playback: supports the instant playback function, which plays back the current video recorded by the specified camera in the preview screen without affecting other camera preview functions.

4. Smooth viewing and half storage: the parsing efficiency of smart Smart265 encoding is 50% higher than that of ordinary H.265 encoding. It can not only watch smoothly but also save a lot of bandwidth and storage costs.

5. Centralized management of multi-channel monitoring and fast playback: 4/8 channels of synchronous playback and multi-channel synchronous playback are supported, and normal and event videos can be distinguished by colors, effectively improving the efficiency of video retrieval and playback.

6. Adapt to mainstream cameras in the market: strong compatibility, can connect webcams of many mainstream manufacturers that meet the standards of ONVIF, etc., and the back-end upgrade is simple and cost saving.

四、 Environment

1. Dimensions: 8.7 (H) * 48 (W) * 30 (D) cm, 2U chassis.

2. Weight: 3 kg.

3. Working temperature: Indoor equipment -10℃～+55 ℃, Outdoor equipment -40 ℃～+55 ℃.

4. Relative humidity: 0～95%.

5. Working period: 24 hours * 365 days.

五、Equipment List
