JG-1038U60 Cabinet
一、Overview
JG-1022, JG-1035, JG-1038, JG-1042 series 1U to 42U cabinets (1U=4.45cm), installed with various 19 inch standard auxiliary facilities, black.
Cabinet appearance，as shown below.
二、Appearance

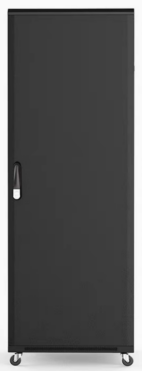

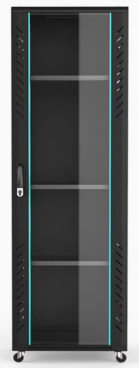

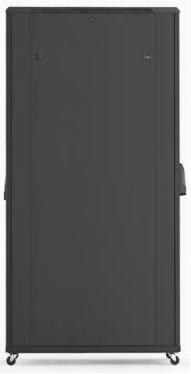

Front | Side | Rear |
| | |
三、Model Selection
No. | Cabinet Model | Size (cm) | Net Weight (Kg) | Configuration |
1 | JG-1022U60 | 120 (H) * 60 (W) * 60 (D) cm | 40Kg | 22U |
2 | JG-1035U60 | 160 (H) * 60 (W) * 60 (D) cm | 70Kg | 35U |
3 | JG-1038U60 | 180 (H) * 60 (W) * 60 (D) cm | 75Kg | 38U |
4 | JG-1042U60 | 200 (H) * 60 (W) * 60 (D) cm | 80Kg | 42U |
5 | JG-1022U80 | 120 (H) * 60 (W) * 80 (D) cm | 50Kg | 22U |
6 | JG-1035U80 | 160 (H) * 60 (W) * 80 (D) cm | 80Kg | 35U |
7 | JG-1038U80 | 180 (H) * 60 (W) * 80 (D) cm | 90Kg | 38U |
8 | JG-1042U80 | 200 (H) * 60 (W) * 80 (D) cm | 100Kg | 42U |
9 | JG-1022U100 | 120 (H) * 60 (W) * 100 (D) cm | 60Kg | 22U |
10 | JG-1035U100 | 160 (H) * 60 (W) * 100 (D) cm | 90Kg | 35U |
11 | JG-1038U100 | 180 (H) * 60 (W) * 100 (D) cm | 100Kg | 38U |
12 | JG-1042U100 | 200 (H) * 60 (W) * 100 (D) cm | 110Kg | 42U |
13 | Customize the cabinet size according to customer requirements. | / | ||
四、Characteristic
1. Single door, symmetrical gradual strip vent, front door is transparent tempered glass door, rear door is single door, no vent, sheet metal.
2. Front and rear doors, welded free stiffener structure, beautiful and firm.
3. The front and rear doors are equipped with high-grade elegant locks and 5mm thick high-strength tempered glass.
4. The front and rear doors can open 180 ° from left to right, and the rear door can be changed into a double door.
5. Installation beam and square hole strip: aluminum zinc plate, SPCC high-quality cold-rolled plate.
6. Thickness: square hole strip 2.0mm, installation beam 1.5mm, others 1.2mm.
7. Surface treatment: degreasing, pottery, anti-static plastic spraying.
8. Protection grade: IP20.
9. Load bearing: 800 kg static load (with feet).
五、Standards
1. Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494;
2 . GB/T3047.2-92；Compatible with ETSI standards.
