Product Overview

The weather equipment distributed and constructed at the south, middle and north ends of the airport runway are respectively installed with a set of wireless transmission system. Through this transmission mode, the point-to-point meteorological terminal data communication between each weather station and the aviation management building is realized, so as to ensure that the data transmission between weather equipment is still normal through the wired and wireless automatic switching system after the cable is damaged.

Background Monitoring  Software Interface

Advantage

advantage

1. The system can realize wireless data transmission within 20km of the airport.

2. The system can realize the automatic switching function between wired and wireless transmission systems, and they are backup to each other.

3. The monitoring software configured in the background can visually display the data transmission status of each weather station equipment port.

4. Access data type: RS-232, RS-422, RS-485, IP, etc., unlimited access quantity.

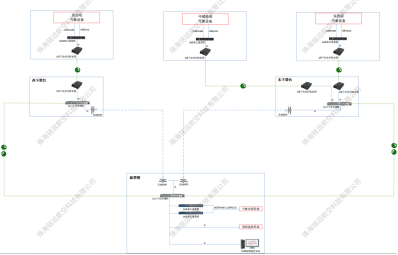

Topology diagram of automatic switching between point-to-point wired transmission and wireless transmission of airport weather equipment

Application Case

Diagram of wireless transmission equipment (5G wireless bridge) installed between meteorological equipment end and air traffic control building

Equipment Composition

10 Gigabit switch with 4 optical ports, serial port server, optical transceiver, optical cable, optical ring network monitoring software, etc.

ELECTRICAL

Primary Power：110V — 220V AC±10%，47 — 63 Hz，single phase.

MECHANICAL

Size：180cm(H)X60cm(W)X60cm(D)，Standard 38U cabinet.

Weight：40kg.

ENVIRONMENTAL

Temperature：Indoor -10°C— +50°C.

Relative Humidity：0 — 95%.

Application Airport

Guilin in Guangxi, Jining in Shandong, Jiayuguan in Gansu, Kangding in Sichuan and other airports.
