一、Business

“Bright Aviation”supplies complete sets of equipment, including spare parts supply, software customization, installation and commissioning, factory training, technical consultation, after-sales service,equipment fault repair,software upgrading,periodic inspection and other businesses.

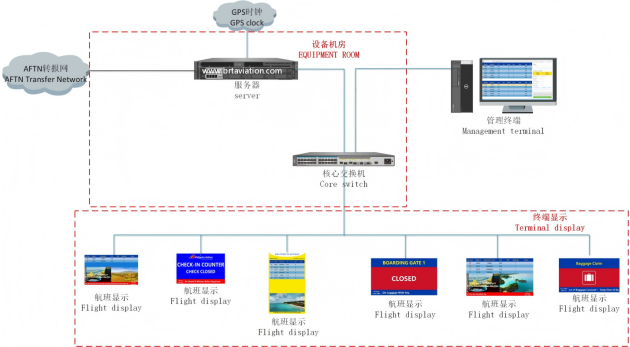

二、System Structure

三、Overview

1. FIDS provides all-round flight information display and guidance services for inbound and outbound passengers and pick-up and drop off personnel in the airport terminal.

2. FIDS information source comes from flight plan, aviation telegram, airport information and other information.

3. FIDS information is divided into basic information, plan information, dynamic information, temporary information, etc.

四、System Function

1. Departure passengers: provide departure flight display, departure check-in guidance display, departure waiting guidance display, departure boarding guidance display, departure VIP guidance display.

2. Inbound passengers: provide inbound flight display and baggage guidance display.

3. Inbound and outbound passengers: provide safety inspection information, announcement prompt information, festival celebration information, inspection and quarantine information, frontier inspection information, temporary announcement information, public service publicity video, commercial advertising video, etc.

五、Characteristic

1. Simple Maintenance: the Browser/Server structure conforms to the future technology development trend, and remote maintenance is realized by using the monitoring terminal.

2. Stable Operation: all display terminals in the terminal do not need application software maintenance, and ensure long-term stable operation.

3. Cross Platform Operation: The server side adopts Net technology to ensure cross platform operation of the system.

4. Strong Scalability: the browser side uses memory structure to store dynamic information. No matter how many display terminals are added, the load of back-end database server and communication server will not be increased.

5. Display Effect Is Smooth: the browser display terminal adopts the incremental update technology, and the display interface only updates the dynamic data, does not refresh the whole screen, and the screen does not flicker.

六、Equipment List

No.	Name	Model	Qty/Unit	Description
1	Server	/	1 Set	Industrial server.
2	Desktop PC	/	1 Set	Used for FIDS software background design, scheduling and maintenance.
3	FIDS Display	/	Custom	100 to 32 inches,Including OPS plug-in computer.
4	24 Switch	/	1 Set	24 gigabit IP ports+4 gigabit optical ports.
5	8 Switch	/	Custom	8 gigabit IP ports+4 gigabit optical ports.
6	304 Stainless Steel Bracket		Custom	Frame floor type, vertically install 1-5 displays.
7	Display Fixing Bracket	/	Custom	Wall mounted, vertical or horizontal installation.
8	FIDS Software	FIDS-105A	1 Set	Server software, client software, monitoring software,
9	Cabinet	/	1 Set	/
10	Other Accessories	/	1 Set	/

七、System Composition

1.Database system: it is responsible for providing the basic data required by the system, such as airports and airlines, and saving flight plans, flight dynamics, broadcast information and other data.

2.Server system: system core, supporting various display terminal services.

3.Management end system: provide information management terminal services for staff.

4.Display terminal system: use different LED screens to display flight information, rolling information, video information, etc. Including domestic departure system, check-in system, waiting hall system, VIP lounge system, boarding gate system, domestic arrival system, baggage claim system and monitoring terminal system.

八、Case Display

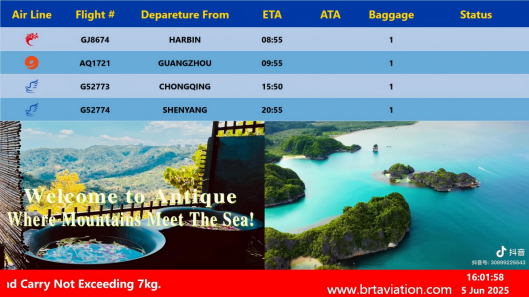

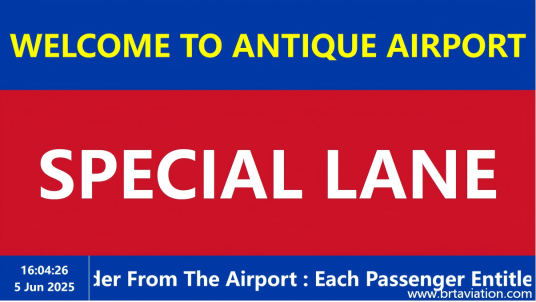

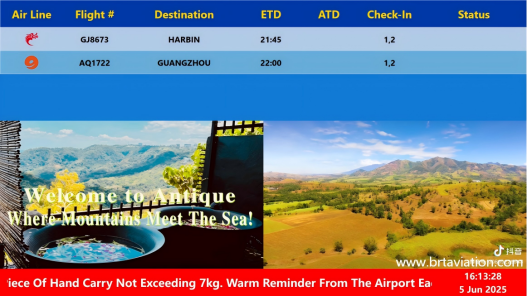

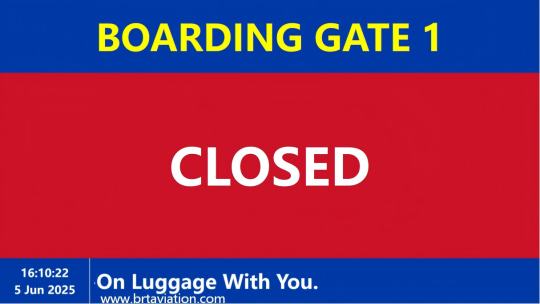

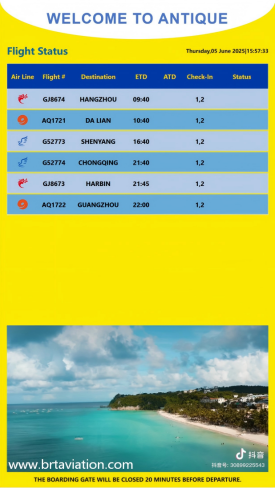

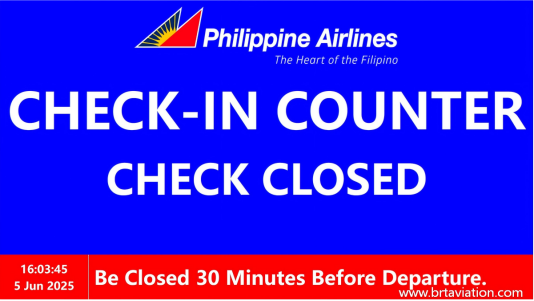

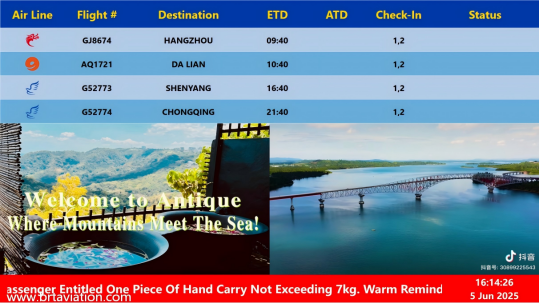

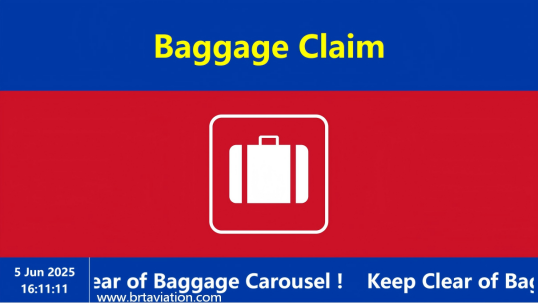

（1）Antique Airport FIDS display diagram

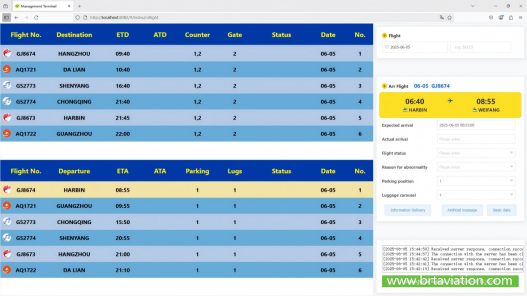

1、Administrator Software Interface
