Airport facilities and brand suppliers

AVBS-203A Automatic Voice Broadcasting System（AVBS）

品牌: Bright Aviation，China.
型号: AVBS-203A
描述: “Bright Aviation” develops, produces and sales AVBS-203A Automatic Voice Broadcasting System（AVBS）.
  • 产品信息
  • 资料下载

一、Business

“Bright Aviation”supplies complete sets of equipment, including  spare parts supply, software customization, installation and commissioning, factory training, technical consultation, after-sales service,equipment fault repair,software upgrading,periodic inspection and other businesses.

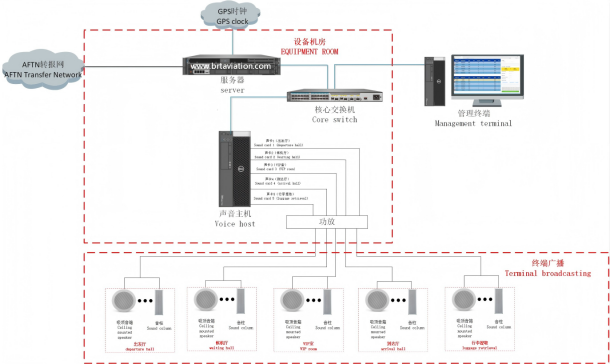

二、System Structure




三、Overview

1. AVBS is installed in the airport terminal building. According to the regional division of the terminal building, AVBS provides corresponding voice broadcasting services for inbound and outbound passengers and pickup personnel.

2. AVBS information source comes from flight plan, aviation telegram, airport information and other information, etc.

3. AVBS information includes basic information, plan information, dynamic information, temporary information, etc.



四、Function

1. AVBS performs corresponding flight voice broadcasting according to different functional areas in the airport terminal.

2. AVBS broadcasting area is divided into arrival hall, departure hall, waiting hall, VIP hall, terminal wide broadcast, etc.



五、Characteristic

1. Simple maintenance: C/S structure, broadcast information is transmitted through IP network. Ceiling mounted and horn speakers have the functions of IP transmission (POE) and audio amplifier. Different broadcast areas use IP address zoning to play, which is simple in wiring and convenient in maintenance.

2. Stable Operation: all display terminals in the terminal do not need application software maintenance, and ensure long-term stable operation.

3. Mature Voice Technology: TTS technology is adopted in the voice broadcast system, which eliminates the need for recording maintenance in the later period.



六、Equipment  List


No.

Name

Model

Qty/Unit

Description

1

Server

/

1 Set

Industrial server.

2

Desktop PC

/

1 Set

Used for AVBS software background design, scheduling and maintenance.

3

Ceiling Speaker

/

Several

It has IP transmission (POE) and audio amplifier functions.

4

Horn Speaker

/

Several

It has IP transmission (POE) and audio amplifier functions.

5

24 Switch

/

5 Set

24 gigabit IP ports+4 gigabit optical ports.

6

8 Switch

/

Several

8 gigabit IP ports+4 gigabit optical ports.

7

AVBS Software

AVBS-203A

1 Set

Server software, client software,

8

Cabinet

/

1 Set

/

9

Other Accessories

/

1 Set

/



七、Boarding Broadcast Case

Ladies and Gentlemen, May i have your attention please: flight QW6009 to HAIKOU, is now boarding. Would you please have your belongings, and boarding passes ready, and board the aircraft, through gate Number 2. We wish you a pleasant journey. Thank you!



八、Mechanical

1. Weight：160kg.

2. Size: 120 (H) * 60 (W) * 100 (D) cm, 22U cabinet.

3. Primary Power：110～220Vac±15%，45～63Hz，single phase.



九、Environmental

1. Temperature: Indoor -10°C～+50°C.

2. Relative humidity: Indoor 0～95% (non condensing).

3. Altitude: 0～4500m MSL.

4. Work cycle: continuous unattended.



十、Application

1. Weifang Airport, Qiqihar Airport, Liping Airport and other Chinese airports.

2. Antique Airport, Iloilo Airport and other Philippine airports.
