Standard Synchronous Clock Equipment

品牌: Bright Aviation，China.
型号: SZ-610A
描述: “Bright Aviation” sales SZ-610A standard synchronous clock equipment.
  • 产品信息
  • 资料下载

一、Overview

The standard synchronous clock equipment provides a unified time service signal for all kinds of equipment working in the airport air traffic control building and the terminal building, so as to ensure that all kinds of equipment work at the same standard time service.



二、Characteristics

1. Satellite access signals: GPS, Beidou, GLONASS satellites.

2. R8-232 output ports: 5.

3. RS-422 output ports: 5.

4. IP Ethernet port: 1.

5. AC power supply: 110V-220V AC ± 10%, 47-63 Hz, single-phase.

6. Size: 48 (L) × 18 (W) × 30(D)cm , standard 4U chassis.

7. Connection mode between slave clock and master clock: IP , RS-232 , RS-485.

8. The master clock provides unified time service signals for communication, navigation, weather equipment, servers, computers, sub clocks, etc.



三、Appearance


Master clock (master clock)  Front View

Master clock (master clock)  Rear View




Subclock 1

Subclock 2



1. SZ-701A sub clock, single side display, display time, minute and second,32（L）* 9（W）* 5.5（D）cm。

SZ-705A sub clock, single side display, displays the month, month, day, hour, minute, second, week, 75（L）* 28（W）* 5.5（D）cm。

2. SZ-703A sub clock, double-sided display, display hours, minutes and seconds,51（L）* 12（W）* 5.5（D）cm。

4. SZ-705B sub clock, double-sided display, display year, month, day, hour, minute, second, week, 80（L）* 32（W）* 11（D）cm。

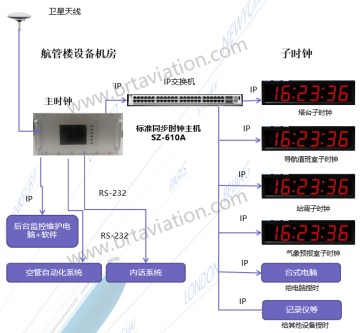

四、Structure




五、Application

Anshun Airport, Guangyuan Airport, Guiyang Airport and other Chinese airports.
