Product Overview

Instrument Landing System (ILS), ILS equipment includes course beacon (LLZ) and glide-path (GP). The RF carrier signal output by the localizer beacon host is connected to the LLZ antenna simulator. The antenna simulator not only acts as a transmitting load (instead of the LLZ transmitting antenna function), but also couples and mixes the output of RF monitoring signals (instead of the LLZ monitoring antenna sampling RF signal function), ultimately making all monitoring parameters of the LLZ equipment monitor work normally.

Product Characteristic

1. Applicable to all ILS equipment models (ILS520, NM7000B, ILS2100, ILS410, ILS420, etc.).

2. Localizer CSB average RF power input range: 5W to 30W, SBO average RF power input range: 0.1W to 0.5W, and monitored RF signal output range: 10dBm to -40dBm.

3. RF and monitoring signal connector model: N-type female.

4. The 4-channel RF signal input connector is marked as COU CSB, COU SBO, CLR CSB and CLR SBO. 4-channel RF monitoring output signal, marked as DS, CL, NF, CLR.

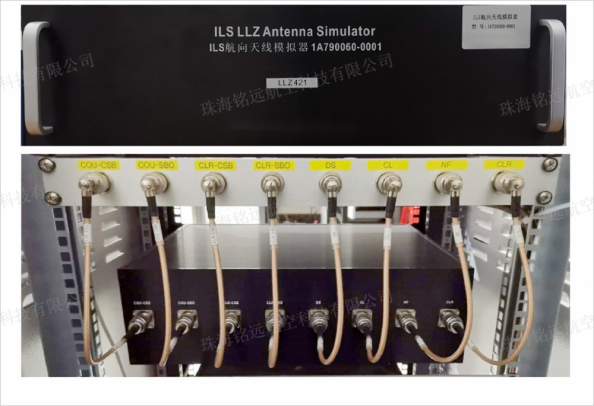

Appearance

MECHANICAL

Size：13cm(H)X60cm(W)X24cm(D)，Standard 3U chassis.

Weight：5kg.

ENVIRONMENTAL

Temperature：Indoor -10°C—+50°C.

Relative Humidity：0 — 95%.

Application Airport

Yinchuan in Qinghai, Yantai in Shandong, Mangshi in Yunnan, Guilin in Guangxi, Hohhot in Inner Mongolia, Guiyang in Guizhou and other airports.
