Product
RF Relay
Product Overview
RF relay, which is used in the air traffic control equipment of civil aviation airport, is mainly responsible for the main and standby switching of two RF signals, that is, two RF input signals. After the relay switching, one is connected to the antenna transmission signal, and the other is connected to the dummy load system. There are single pole and double pole relays.
Product Characteristics

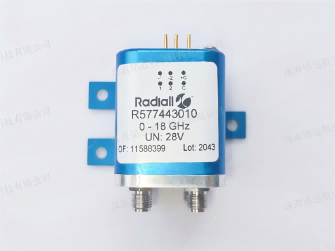

(1) R577443010 RF Relay
1. Operating frequency: 0 to 18GHz.
2. Control voltage: 28V DC.
3. Connector type: SMA female. Double pole type, 2-channel RF signal input, 2-channel RF signal output.
4. Switching times: more than 100000 times.
5. Application equipment: civil aviation airport ILS, DME, DVOR equipment, etc.
6. Product appearance, as shown in the figure below.
(2) R570013000 RF relay
1. Operating frequency: 0 to 3GHz.
2. Control voltage: 28V DC.
3. Connector type: N-type female, single pole, two RF signal inputs, one RF output.
4. Switching times: more than 100000 times.
5. Application equipment: civil aviation airport VHF radio, etc.
6. Product appearance, as shown in the figure below.

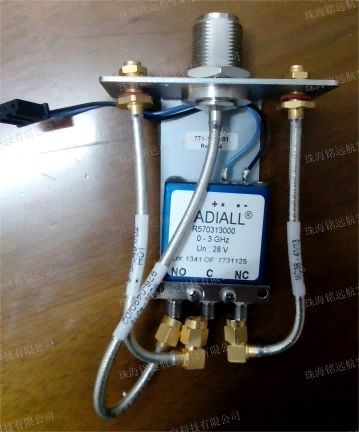

(3) R570313000 RF relay
1. Operating frequency: 0 to 3GHz.
2. Control voltage: 28V DC.
3. Connector type: N-type female, single pole, 2-way RF signal input, 1-way RF output
4. Switching times: more than 100000 times.
5. Application equipment: civil aviation airport VHF radio, etc.
6. Product appearance, as shown in the figure below.
